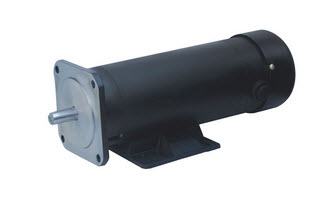

Low rpm 180v industri dc motor











Quick Details

  • Usage: Electric Bicycle, Fan
  • Certification: CCC, CE, UL
  • Type: DC motor
  • Torque: 4.5Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Totally Enclosed
  • Speed(RPM): 1700rpm
  • Continuous Current(A): 5.93A
  • Output Power: 800W
  • Voltage(V): 180V
  • Efficiency: IE 2
  • G,.W: 15KG
  • carton size: 43*19*20.5cm

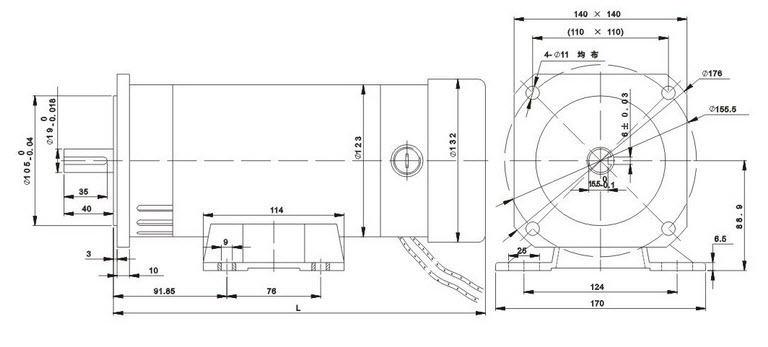

◊ Drawing

◊ Specification

◊ Model Description

123

ZSV

220

-

600

1.

2.

3.



4.


1.Body OD:123-fuselage outside diameter of 123mm

2.ZSV:ferrite permanent magnet DC motor

3.Voltage:220-220V.DC input

4.Speed:600-Rated speed 600rpm
